HTTP Headers

This guide is maintained for Ruk-Com PaaS. Screens and options may vary by platform version and account permissions.

Confirm the environment, region and account permissions, and back up current settings before changing a production system.

HTTP headers are the core part of the HTTP requests and responses. They pass additional information with an HTTP request or response (e.g., the client browser, requested page, server, and more).

The main headers used with environments for deploying your applications:

Header Description Value
host Specifies the host and port number of the resource (server) being requested. {envName}.{platformDomain}
x-forwarded-proto Identifies the protocol (HTTP or HTTPS) that connects to your proxy or load balancer. http/https
x-forwarded-for Identifies the originating IP addresses of a client connecting to a web server through an HTTP proxy or load balancer. xx.xx.xx.xx, xx.xx.xx.xx IP or IPs chain (if a request goes through multiple proxies)
x-real-ip The ending IP address in the x-forwarded-for chain, i.e., the most recent proxy of a client connecting to a web server. xx.xx.xx.xx the right-most IP address in x-forwarded-for
x-host The originating domain name of the server (for virtual hosting) and optionally the TCP port number. {envName}.{platformDomain}
x-uri Identifies a name or a web resource. /

Tip: Additional security headers are used for some specific stacks.

The list of supported HTTP headers can vary based on the topology of the connected environment. Due to external access specifics (via resolver/SLB or public IP), there are four possible scenarios when working with the platform:

Topology Scheme Supported Headers

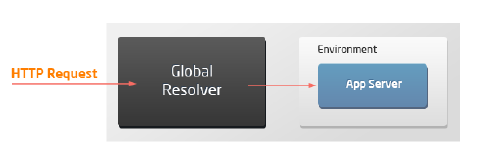

Single application server Image 31: SLB to app server host x-forwarded-proto x-real-ip x-forwarded-for x-host

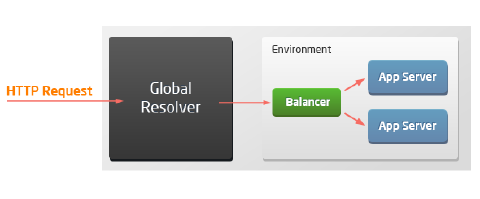

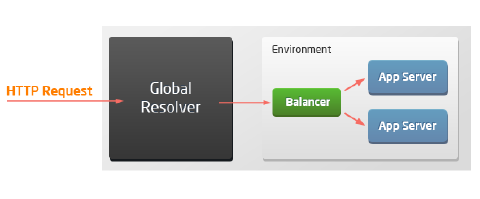

Load balancer with application servers Image 32: SLB to load balancer host x-real-ip x-host x-forwarded-for x-uri x-forwarded-proto

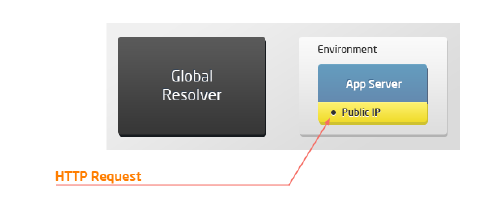

Application server with public IP Image 33: public IP to app server host

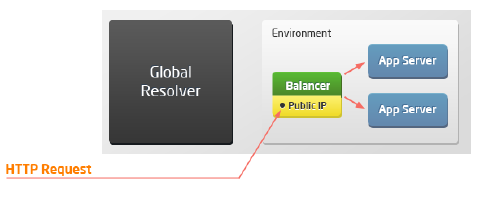

Load balancer with public IP and application servers Image 34: public IP to load balancer host x-real-ip x-host x-forwarded-for x-uri x-forwarded-proto

Security Headers

You can easily manage security headers by managing the appropriate configuration file. The path is different for different servers:

  • Apache (PHP, Ruby, Python), MySQL, MariaDB: /etc/httpd/conf.d/10-shared_headers.conf
  • NGINX (PHP, Ruby) and LEMP: /etc/nginx/conf.d/headers/10-shared_headers.conf
  • LiteSpeed, LLSMP: /var/www/conf/vhconf.xml (adjust via the admin panel only)
  • Tomcat, TomEE: /opt/tomcat/conf/web.xml

Notes:

  • The headers processing for the Node.js, Golang, .NET, JavaEngine, and Springboot servers must be implemented manually in the user application.
  • For the Tomcat and TomEE stacks, only the following headers are enabled by default: X-Content-Type-Options, X-Frame-Options, X-XSS-Protection, and Strict-Transport-Security (for SSL). Other headers can be enabled manually, if needed.

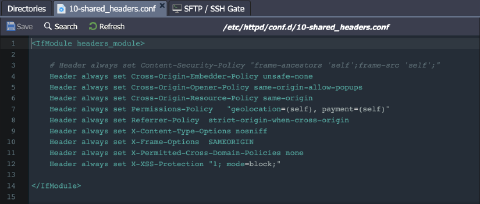

Image 36: security headers configuration file Don’t forget to restart your server to apply any changes made to the configuration file.

The following additional HTTP headers are used on the above-listed stacks by default:

Header Description Value
Cross-Origin-Embedder-Policy Allows the server to declare an embedded policy for the given document. unsafe-none;
Cross-Origin-Opener-Policy Prevents other domains from opening/controlling a window. same-origin-allow-popups
Cross-Origin-Resource-Policy Prevents other domains from reading the response of the resources to which this header is applied. same-origin
Content-Security-Policy Controls resources the user agent is allowed to load for a given page. Disabled by default. frame-ancestors ‘self’;frame-src ‘self’;
Expect-CT (only with SSL enabled) Allows sites to enforce the Certificate Transparency requirements, which prevents the use of miss issued certificates for the site (i.e requires that any certificate for that site appears in public CT logs). max-age=3600, enforce
Permissions-Policy Provides a mechanism to allow and deny the use of browser features in its frames and embedded iframes. payment=(self) geolocation=(self)
Strict-Transport-Security (only with SSL enabled) Forces communication using HTTPS instead of HTTP. max-age=5; includeSubDomains
X-Content-Type-Options Disables MIME sniffing and forces the browser to use the type given in Content-Type. nosniff
X-Frame-Options Indicates whether a browser should be allowed to render a page in a ,
